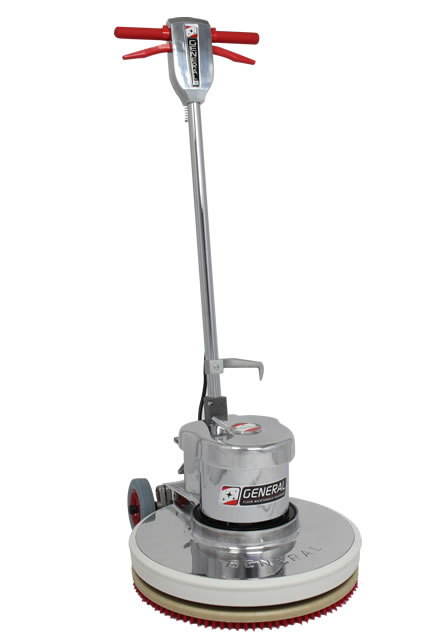

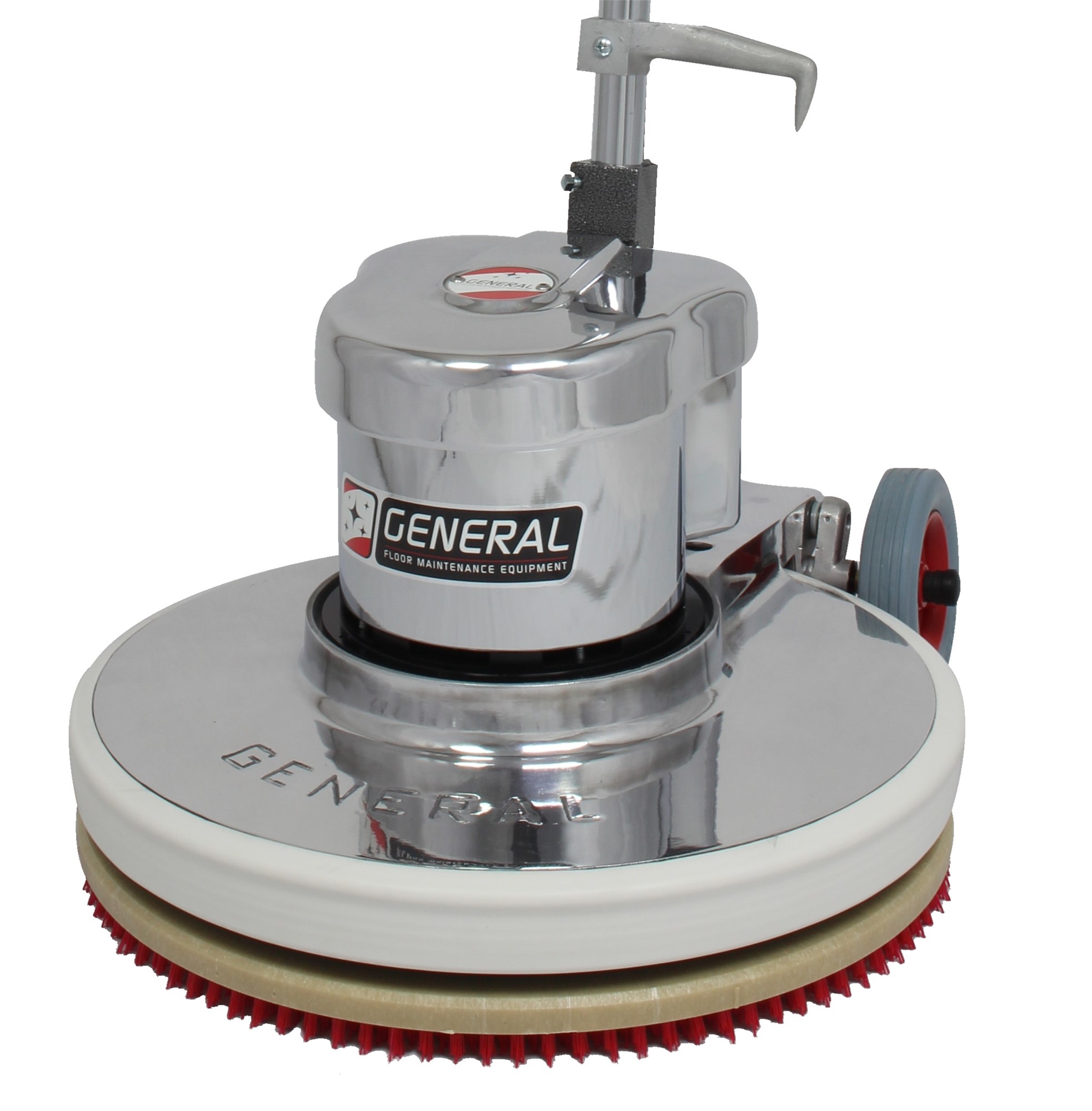

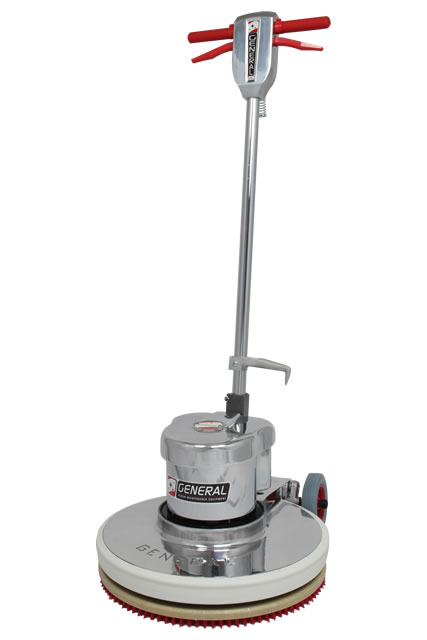

KCD Series

The KCD series features the most powerful Extra Heavy Duty floor machines in the market today. Perfect for sanding to concrete preparation to stripping to deep scrubbing or shampooing and for every day cleaning. The KCD is the best of the best, equipped with cool running powerful 1.5 HP Motor provide high torque with a low-amp draw, Ultimate in Power and Performance

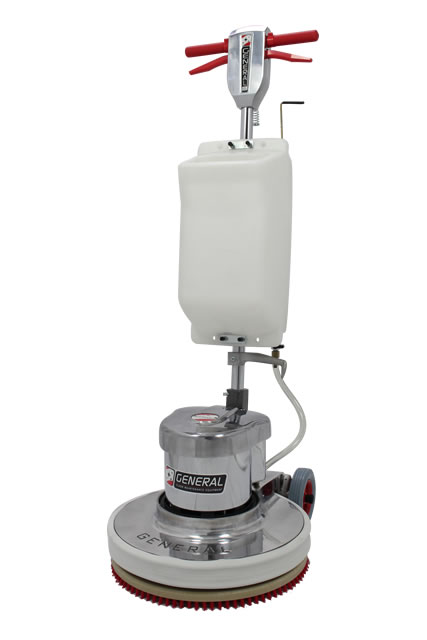

KC with solution tank
thumb (2)
thumb (1)
  • Perfect for sanding to concrete preparation, stripping to deep scrubbing or shampooing to cleaning.
  • Cool running powerful 1½ hp motor. 120 or 220 volts.
  • One piece 360 degree Non-marking bumper.
  • 6” shock absorbing flip up Non-marking wheels.
  • Pivot System.
  • ALL metal construction.
  • Solution tank “ready” system.
  • Includes a 50ft (15.2 m) safety red cable with waterproof jacket.
  • Dual non-metallic Safety switch tabs.
  • Order brushes, pad drivers and solution tank separately.

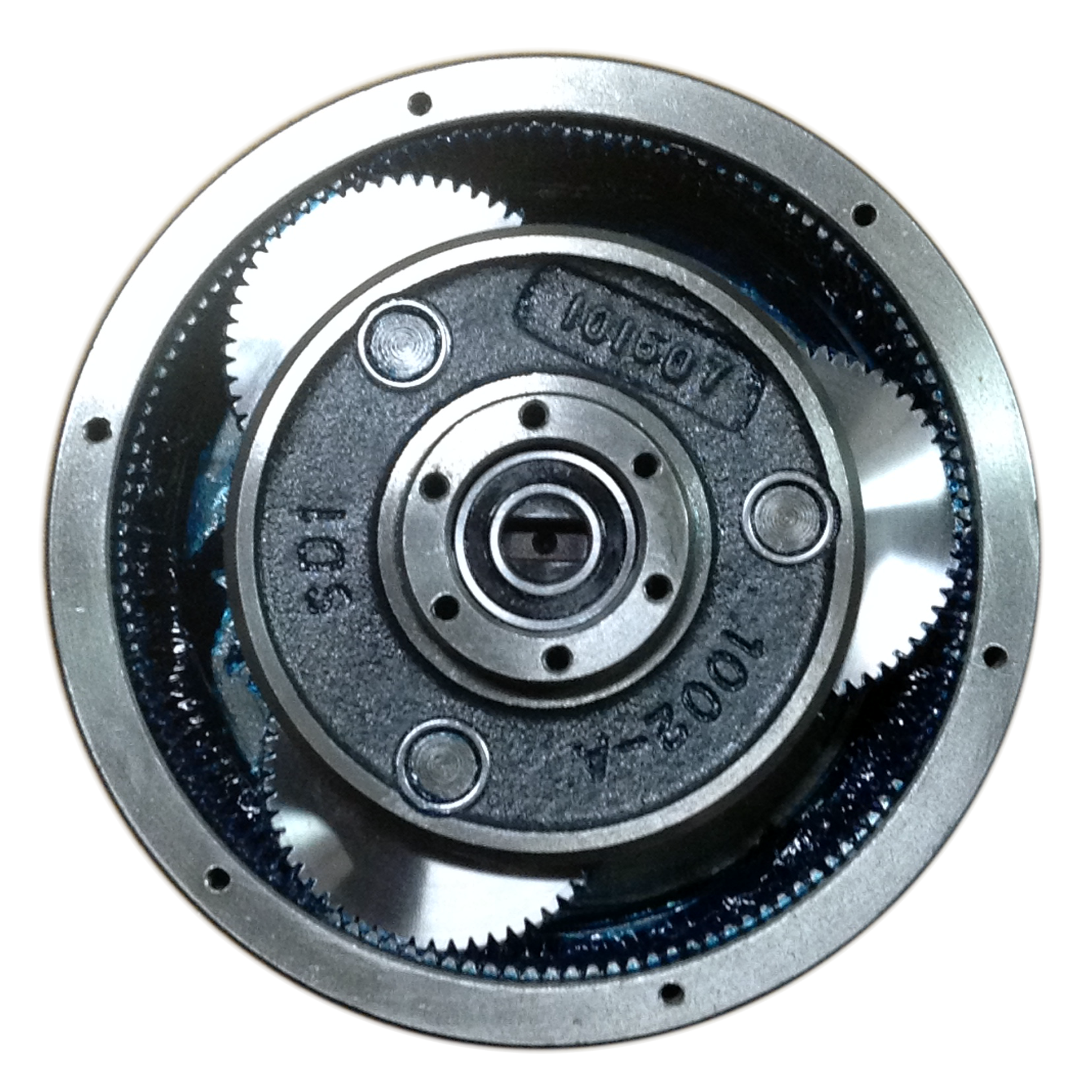

Triple Planetary Gear Box

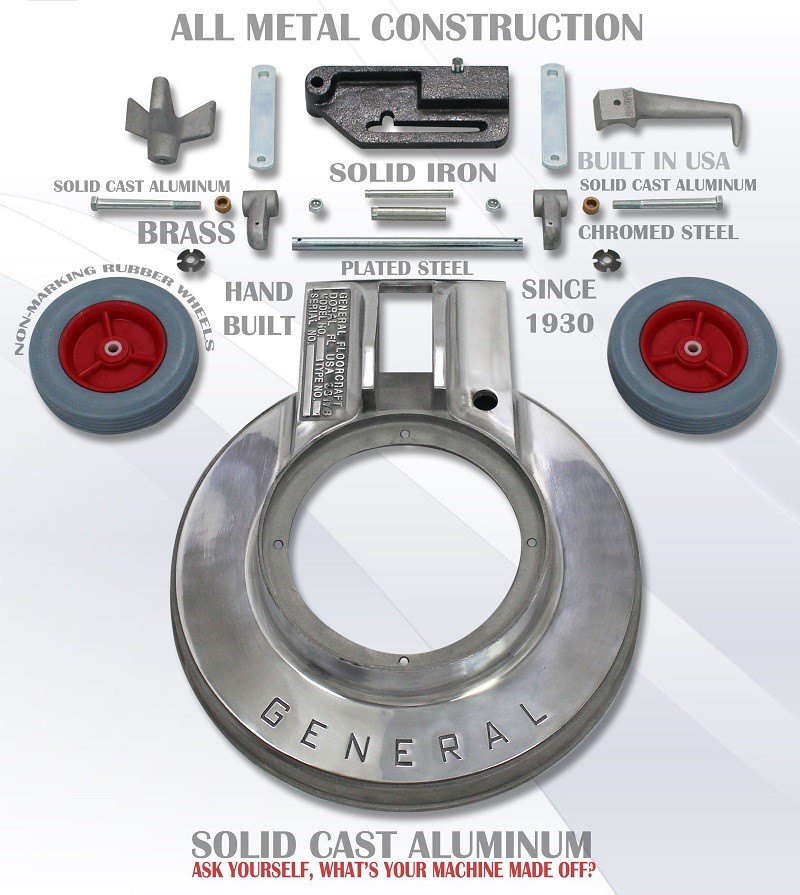

All Metal Construction

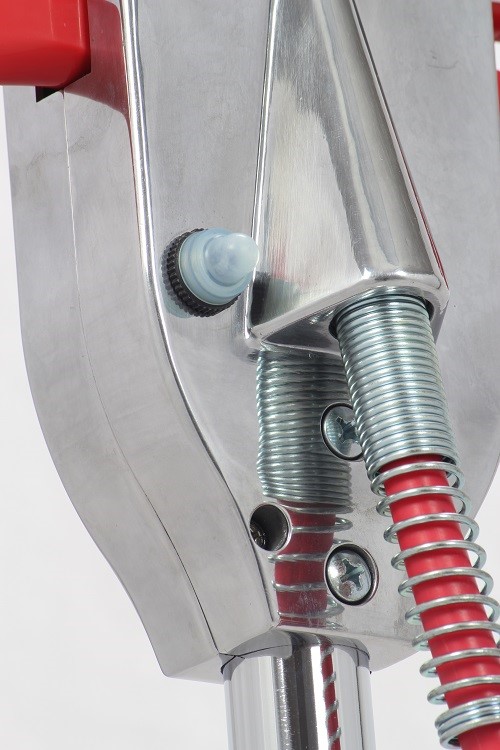

Dual Safety Switch
Soft touch grips
Die cast switchbox
Circuit breaker

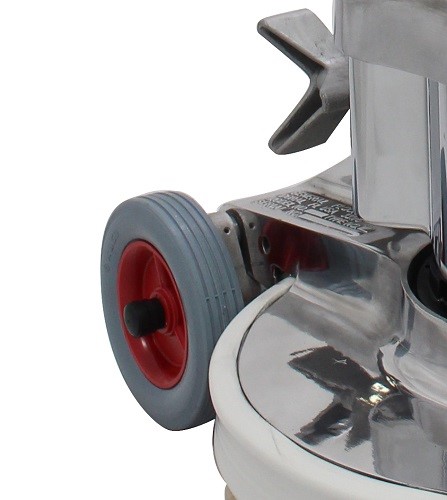

6" Shock absorbing Flip-Up Non-Marking Wheels


  KCD-17 KCD-20 KCD-23
Current 15 amp (120 V) 15 amp (120 V) 15 amp (120 V)
Gear Box Triple Planetary Triple Planetary Triple Planetary
Motor AC 1½ hp (1,119 w) 1½ hp (1,119 w) 1½ hp (1,119 w)
Pad Size 17” (43.2 cm) 28” (50.8cm) 23” (58.4 cm)
Pad Speed 175 rpm 175 rpm 175 rpm
Polishing Performance 2,400 ft2/hr 2,497 ft2/hr 2,547 ft2/hr
Scrubbing Performance 2,308 ft2/hr 2,401 ft2/hr 2,449 ft2/hr
Spray Buffing Performance 2,069 ft2/hr 2,152 ft2/hr 2,195 ft2/hr
Weight 98 lbs (44.5 kg) 114 lbs (51.8 kg) 121 lbs (55 kg)


Optional Solution Tank

Our 4 gallon solution tank for our line of floor machines, features brass hardware and a flow control valve that allows operators to properly manage the amount of solution used during cleaning. An extra-wide opening makes tank filling easier and helps prevent chemical spills. Our machines are Intertek certified with the solution tank on them.

·         Mounting hardware included.
·         Durable construction.
·         4 gallon capacity.
·         See-thru tank.
·         Easy to set up.
·         Solution control valve.

No job is too tough for this machine. The KCD will increase your efficiency and minimize equipment down the time.


pdf iconKCD 17-23 MANUAL 120 V 60 Hz
